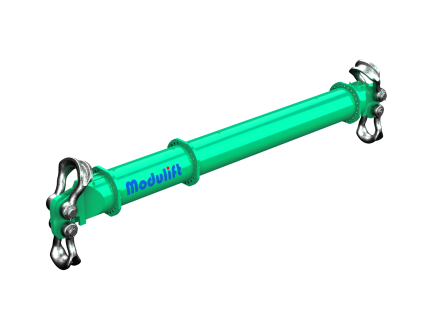

MOD 800J/1000 Spreader Beams

Rated at 1000t SWL at 25m span (30° STV)
‘Sling to Vertical’ angle, 30º or less
End Units and Drop Links are rated at 500t WLL each

Please refer to the table below for load ratings at alternative sling to vertical (STV) angles and beam lengths.

Span (m)	MOD 800J/1000
	Sling to Vertical Angle (STV)
	30º
	WWL(t)	Min. Top Sling Length (m)
2	1000	1.5
3	1000	2.5
4	1000	3.5
5	1000	4.5
6	1000	5.5
7	1000	6.5
8	1000	7.5
9	1000	9.5
10	1000	9.5
11	1000	10.5
12	1000	11.5
13	1000	12.5
14	1000	13.5
15	1000	14.5
16	1000	15.5
17	1000	16.5
18	1000	17.5
19	1000	18.5
20	1000	19.5
21	1000	20.5
22	1000	21.5
23	1000	22.5
24	1000	23.5
25	1000	24.5
26	985	25.5
27	915	26.5
28	845	27.5

MOD 800J/1000
Product Code	Model	Description	Weight item (kg)
H050228000	P1	End Unit WLL 500t	1050
H050238000	P2	Drop Link WLL 500t	385
H050258006	P3	6.0m Strut	3175
H050258004	P5	4.0m Strut	2250
H050258003	P6	3.0m Strut
H050258002	P7	2.0m Strut	1325
H050258001	P8	1.0m Strut	865
H050258000.5	P0	0.5m Strut	630
H050266000	P10	600t Wide Body Shackle	980
H050255000	P11	500t Wide Body Shackle	780
	P12	M24 x 100 Grade 10.9HT Bolts Nuts & Washers

Trunnion End

Trunnion Spreader Beam

Available on sizes MOD 250 and above, this beam provides a shackle free lifting solution that revolutionises the rigging industry by offering an efficient, lightweight and economic option.

It reduces the cost of rigging by up to 50%. Compared to similar applications, the rigging up phase can take up to half the duration therefore saving time and money.

-Reduce your rigging weight

-Reduce your health and safety concerns
